ACLs - DACLs/SACLs/ACEs
Access Control List (ACL)
An ACL is an ordered list of ACEs that define the protections that apply to an object and its properties. Each ACE identifies a security principal and specifies a set of access rights that are allowed, denied, or audited for that security principal.
An object’s security descriptor can contain two ACLs:
A DACL that identifies the users and groups that are allowed or denied access
A SACL that controls how access is audited
When a user tries to access a file, the Windows system runs an AccessCheck and compares the security descriptor with the users access token and evaluates if the user is granted access and what kind of access depending on the ACEs set.
Discretionary Access Control List (DACL)
A DACL (often mentioned as the ACL) identify the users and groups that are assigned or denied access permissions on an object. It contains a list of paired ACEs (Account + Access Right) to the securable object.
System Access Control List (SACL)
SACLs makes it possible to monitor access to secured objects. ACEs in a SACL determine what types of access is logged in the Security Event Log. With monitoring tools this could raise an alarm to the right people if malicious users tries to access the secured object, and in an incident scenario we can use the logs to trace the steps back in time. And last, you can enable logging for troubleshoot access issues.
How the System Uses ACLs
Each user logged onto the system holds an access token with security information for that logon session. The system creates an access token when the user logs on. Every process executed on behalf of the user has a copy of the access token. The token identifies the user, the user's groups, and the user's privileges. A token also contains a logon SID (Security Identifier) that identifies the current logon session.
When a thread tries to access a securable object, the LSASS (Local Security Authority) either grants or denies access. To do this, the LSASS searches the DACL (Discretionary Access Control List) in the SDS data stream, looking for ACEs that apply to the thread.
Each ACE in the object's DACL specifies the access rights that are allowed or denied for a security principal or logon session. If the object's owner has not created any ACEs in the DACL for that object, the system grants access right away.
If the LSASS finds ACEs, it compares the trustee SID in each ACE to the trustee SIDs that are identified in the thread's access token.
The system examines each ACE in sequence until one of the following events occurs:
An access-denied ACE explicitly denies any of the requested access rights to one of the trustees listed in the thread's access token.
One or more access-allowed ACEs for trustees listed in the thread's access token explicitly grant all the requested access rights.
All ACEs have been checked and there is still at least one requested access right that has not been explicitly allowed, in which case, access is implicitly denied.
Order of ACEs
Because the system stops checking ACEs when the requested access is explicitly granted or denied, the order of ACEs in a DACL is important.
The preferred order of ACEs in a DACL is called the "canonical" order. For Windows 2000 and Windows Server 2003, the canonical order is the following:
All explicit ACEs are placed in a group before any inherited ACEs.
Within the group of explicit ACEs, access-denied ACEs are placed before access-allowed ACEs.
Within the inherited group, ACEs that are inherited from the child object's parent come first, and then ACEs inherited from the grandparent, and so on up the tree of objects. After that, access-denied ACEs are placed before access-allowed ACEs.

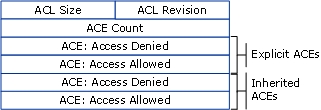

The following figure shows the canonical order of ACEs:
Canonical order of ACEs
The canonical order ensures that the following takes place:
An explicit access-denied ACE is enforced regardless of any explicit access-allowed ACE. This means that the object's owner can define permissions that allow access to a group of users and deny access to a subset of that group.
All explicit ACEs are processed before any inherited ACE. This is consistent with the concept of discretionary access control: access to a child object (for example a file) is at the discretion of the child's owner, not the owner of the parent object (for example a folder). The owner of a child object can define permissions directly on the child. The result is that the effects of inherited permissions are modified.
GUI Example
This is the classic security tab of a folder showing the ACL, DACL and ACEs:
If we click the Advanced button we will get more options like inheritance:
And if you add or edit a Security Principal:
And last we have the SACL in the Auditing tab:
Example: Explicit access-denied to a group
In this example, the access-allowed group is Everyone and the access-denied group is Marketing, a subset of Everyone.
You want to deny the Marketing group access to a Cost folder. If the Cost folder's ACEs are in canonical order, the ACE that denies Marketing comes before the ACE that allows Everyone.
During an access check, the operating system steps through the ACEs in the order in which they appear in the object's DACL, so that the deny ACE is processed before the allow ACE. As a result, users who are members of the Marketing group are denied access. Everyone else is allowed access to the object.
Example: Explicit before inherited
In this example, the Cost folder has an inheritable ACE that denies access to Marketing (the parent object). In other words, all users who are members (or children) of the Marketing group are denied access by inheritance.
You want to allow access to Bob, who is the Marketing director. As a member of the Marketing group, Bob is denied access to the Cost folder by inheritance. The owner of the child object (user Bob) defines an explicit ACE that allows access to the Cost folder. If the child object's ACEs are in canonical order, the explicit ACE that allows Bob access comes before any inherited ACE, including the inherited ACE that denies access to the Marketing group.
During an access check, the operating system reaches the ACE that allows Bob access before it gets to the ACE that denies access to the Marketing group. As a result, Bob is allowed access to the object even though he is a member of the Marketing group. Other members of the Marketing group are denied access.
Access Control Entries
As stated previously, an ACL (Access Control List) is an ordered list of ACEs (Access Control Entries). Each ACE contains the following:
A SID (Security Identifier) that identifies a particular user or group.
An access mask that specifies access rights.
A set of bit flags that determine whether or not child objects can inherit the ACE.
A flag that indicates the type of ACE.
ACEs are fundamentally alike. What sets them apart is the degree of control they offer over inheritance and object access. There are two types of ACE:
Generic type that are attached to all securable objects.
Object-specific type that can occur only in ACLs for Active Directory objects.
Generic ACE
A generic ACE offers limited control over the kinds of child objects that can inherit them. Essentially, they can distinguish only between containers and noncontainers.
For example, the DACL (Discretionary Access Control List) on a Folder object in NTFS can include a generic ACE that allows a group of users to list the folder's contents. Because listing a folder's contents is an operation that can be performed only on a Container object, the ACE that allows the operation can be flagged as a CONTAINER_INHERIT_ACE. Only Container objects in the folder (that is, only other Folder objects) inherit the ACE. Noncontainer objects (that is, File objects) do not inherit the ACE of the parent object.
A generic ACE applies to an entire object. If a generic ACE gives a particular user Read access, the user can read all the information that is associated with the object — both data and properties. This is not a serious limitation for most object types. File objects, for example, have few properties, which are all used for describing characteristics of the object rather than for storing information. Most of the information in a File object is stored as object data; therefore, there is little need for separate controls on a file's properties.
Object-specific ACE
An object-specific ACE offers a greater degree of control over the types of child objects that can inherit them.
For example, an OU (Organizational Unit) object's ACL can have an object-specific ACE that is marked for inheritance only by User objects. Other types of objects, such as Computer objects, will not inherit the ACE.
This capability is why object-specific ACEs are called object-specific. Their inheritance can be limited to specific types of child objects.
There are similar differences in how the two categories of ACE types control access to objects.
An object-specific ACE can apply to any individual property of an object or to a set of properties for that object. This type of ACE is used only in an ACL for Active Directory objects, which, unlike other object types, store most of their information in properties. It is often desirable to place independent controls on each property of an Active Directory object, and object-specific ACEs make that possible.
For example, when you define permissions for a User object, you can use one object-specific ACE to allow Principal Self (that is, the user) Write access to the Phone-Home-Primary (homePhone) property, and you can use other object-specific ACEs to deny Principal Self access to the Logon-Hours (logonHours) property and other properties that set restrictions on the user account.
The table below shows the layout of each ACE.
Access Control Entry Layout
ACE Field
Description
Type
Flag that indicates the type of ACE. Windows 2000 and Windows Server 2003 support six types of ACE: Three generic ACE types that are attached to all securable objects. Three object-specific ACE types that can occur for Active Directory objects.
Flags
Set of bit flags that control inheritance and auditing.
Size
Number of bytes of memory that are allocated for the ACE.
Access mask
32-bit value whose bits correspond to access rights for the object. Bits can be set either on or off, but the setting's meaning depends on the ACE type. For example, if the bit that corresponds to the right to read permissions is turned on, and the ACE type is Deny, the ACE denies the right to read the object's permissions. If the same bit is set on but the ACE type is Allow, the ACE grants the right to read the object's permissions. More details of the Access mask appear in the next table.
SID
Identifies a user or group whose access is controlled or monitored by this ACE.
Access Mask Layout
Bit (Range)
Meaning
Description/Example
0 - 15
Object Specific Access Rights
Read data, Execute, Append data
16 - 22
Standard Access Rights
Delete, Write ACL, Write Owner
23
Can access security ACL
24 - 27
Reserved
28
Generic ALL (Read, Write, Execute)
Everything below
29
Generic Execute
All things necessary to execute a program
30
Generic Write
All things necessary to write to a file
31
Generic Read
All things necessary to read a file
